Network Master clock - DTS 4803

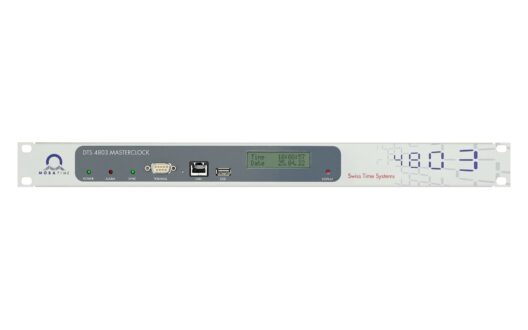

Mobatime DTS 4803.masterclock perspective view
Mobatime DTS 4803.masterclock perspective view Mobatime DTS 4803.masterclock front view Mobatime dts4801-2 back view NTP Masterclock outputs Polarized Impulses DCF seriel telegram Mobatime dts4801-5 NTP masterclock Polarized Impulses DCF seriel telegram back view Outputs

Network Master clock - DTS 4803

The Network Master Clock DTS 4803 is developed especially for a network environment. It is able to control conventional impulse clocks, self-setting MOBALine or IRIG-B / AFNOR slave clocks, and is used as an accurate NTP time reference (time server) for computer systems.

Get an offer Learn more
Oscillator type:XO
1 LAN port (RJ45):provides NTP (< 3'000 requests/s)
Outputs:1x DCF/pulse/frequency current loop output / 1x MOBALine / 1x serial output / DCF active / Polarized Impulses / IRIG, AFNOR,
High precision time:Time reception from GNSS
Show more
IP configDHCP, static IP
Power supplyAC input: 90 - 240 VAC / 50 - 60 Hz / max. 30 VA (typical < 5 VA, without ext. load) / DC input: 24 - 28 VDC / 1.5 A (28 V required for MOBALine)
AccuracyGPS (DCF input) to NTP server: typical < +/- 0.5 ms, NTP client to NTP server: typical < +/- 0.5 ms
Operating controlSerial terminal via RS 232 / R485 (front side, sub-D 9p male) / Telnet or SSH via LAN. Also possible with SNMP or MOBA-NMS
Time-keepingSynchronized with GNSS
Show more
