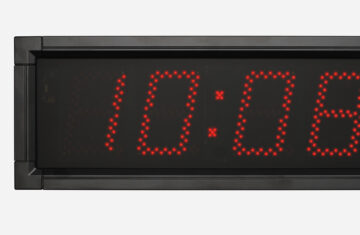

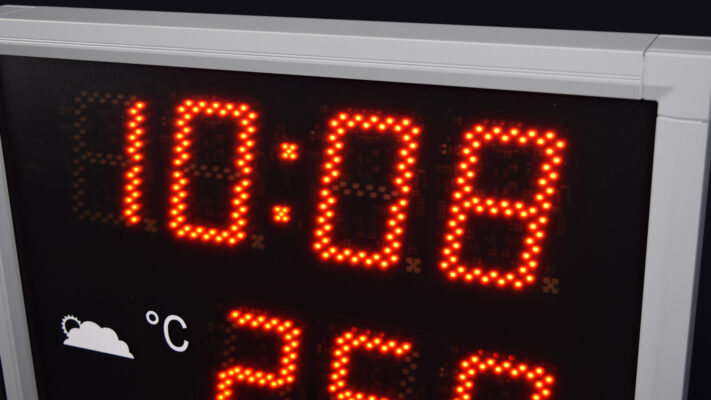

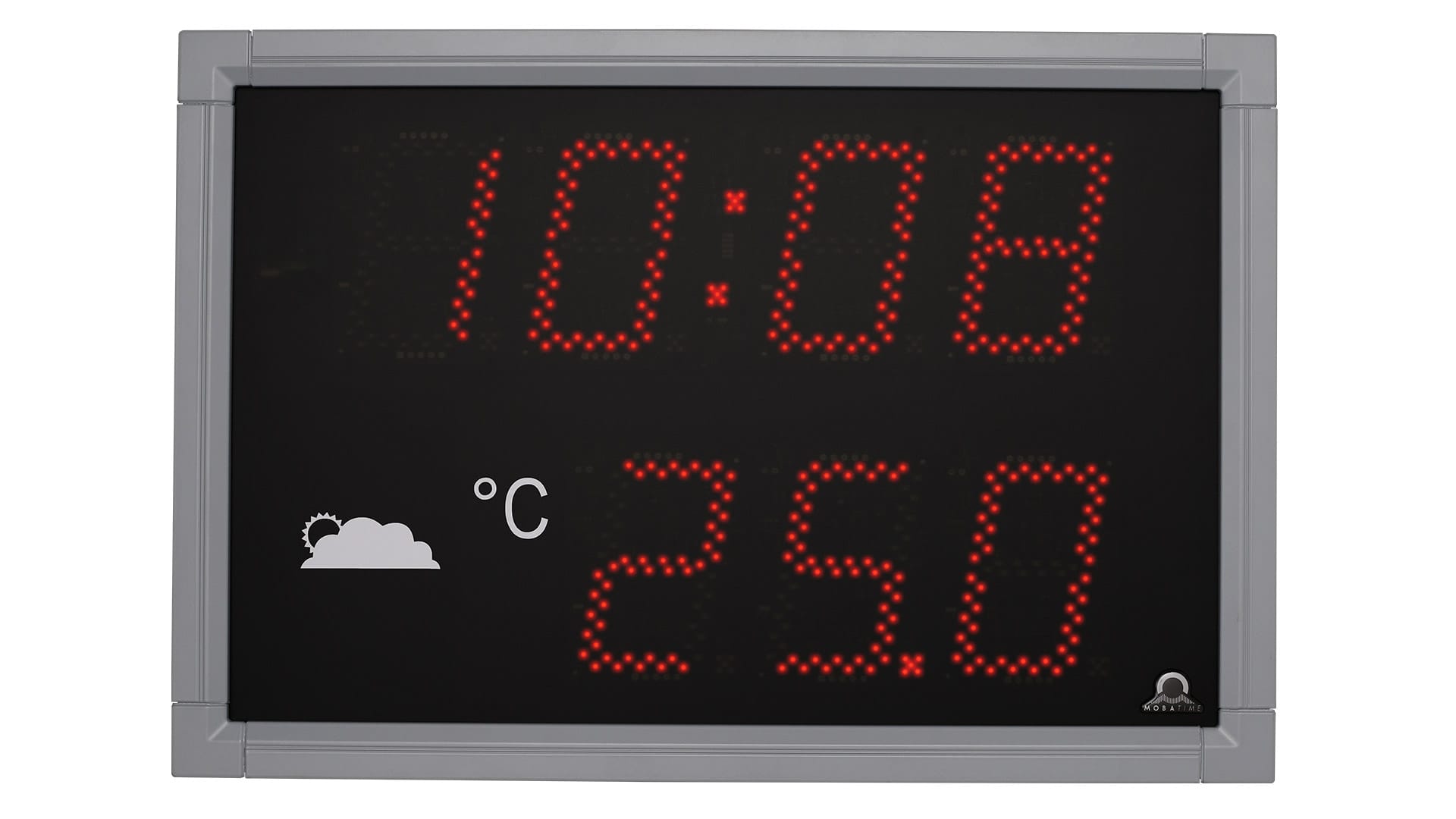

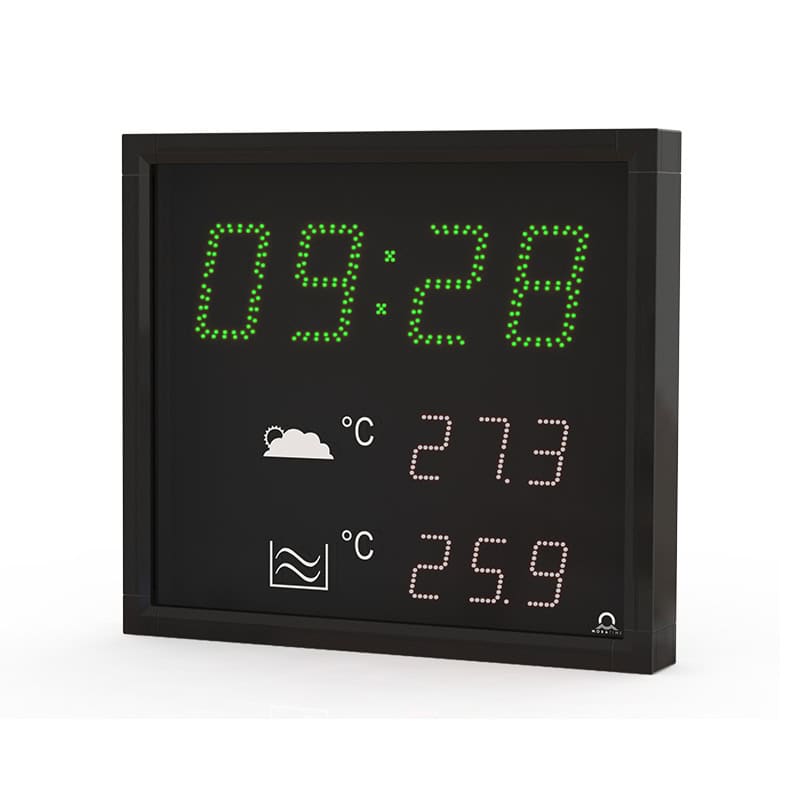

Digital Outdoor Clock - DT Series

Character heights & optimal reading distance:

• 100 mm = 40-60 m
• 180 mm = 70-100 m
• 100 /57 mm = 40-60 m & 25-30 m

Viewing angle: 160°

Time Distribution:

• MOBALine
• Serial telegram (RS 232, RS 485)
• IRIG / AFNOR
• DCF
• GPS (DCF current loop)
• NTP
• polarized Impulse
• WiFi version (2.4/5.0GHz), synchronized through NTP

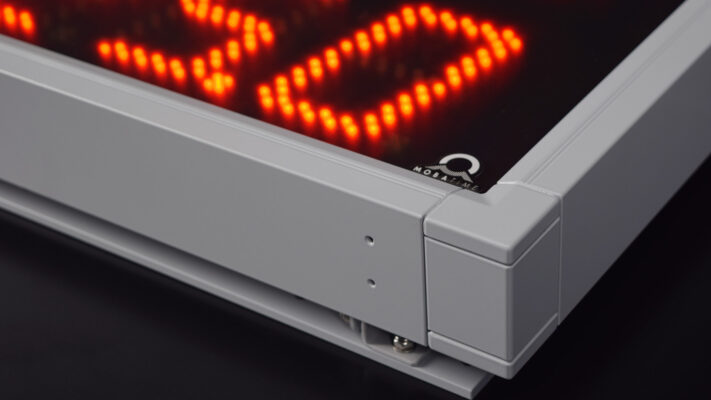

Housing materials:

• Aluminium with surface finish (black or silver powder coated)*
• *Special colors on request

Cover glass:

• Tempered mineral glass cover with anti-reflective foil

Degree of protection:

• IP 65

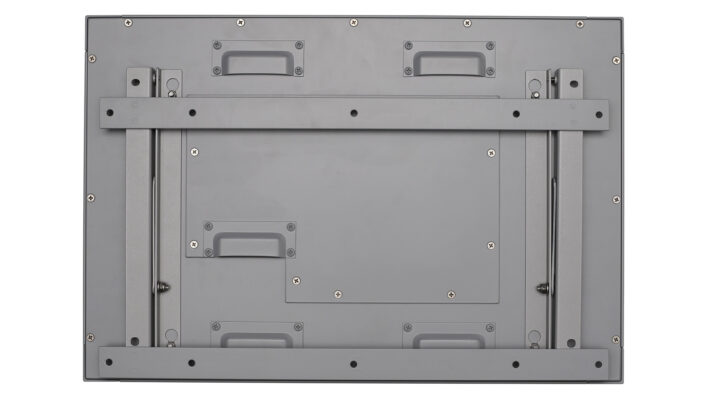

Installation possibilities:

• wall mounting (Single-sided)
• wall bracket (Double-Sided)
• ceiling suspension (Double-Sided)

Power Supply:

• Standard = 100 – 240 VAC, 50 – 60 Hz
• VDC (on request) = 18 – 56 VDC (18 – 40 VAC)

Optional components:

• GPS or DCF radio signal receiver
• Various types of temperature sensors
• Remote controller for clock set up

Time display

• in 12-hour or 24-hour format, four digit = (HH:MM)

Date display

• in four digit format = (DD.MM)

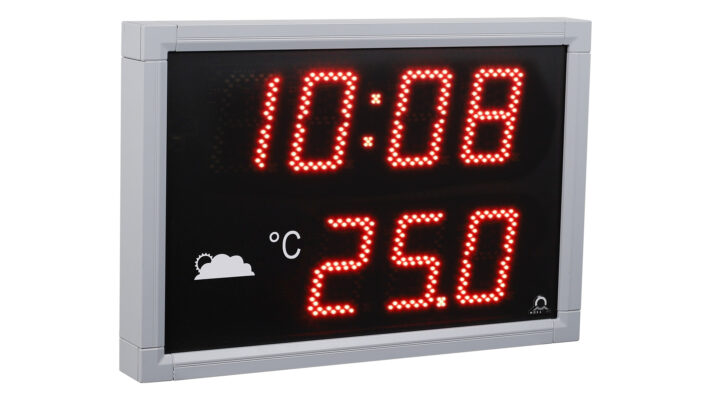

Temperature display

• Celsius or Fahrenheit
• option to choose different colour for each row

Number of rows:

• DT.100 = 2, 3 or 4 rows
• DT.180 = 2, 3 or 4 rows

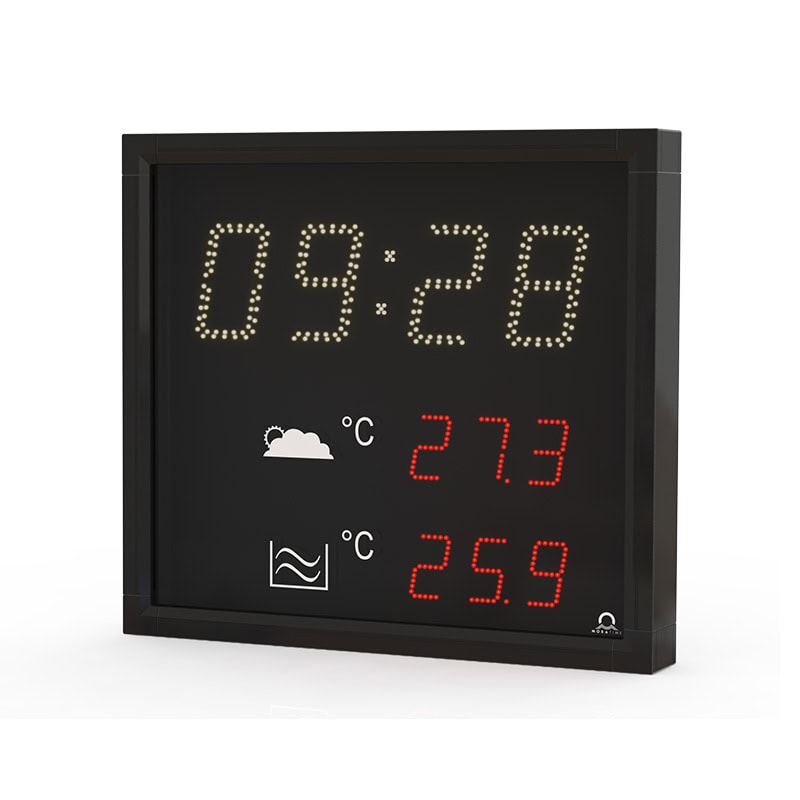

• DT.100/57 = 3 rows

Display brightness

• Automatic or manual adjustment
